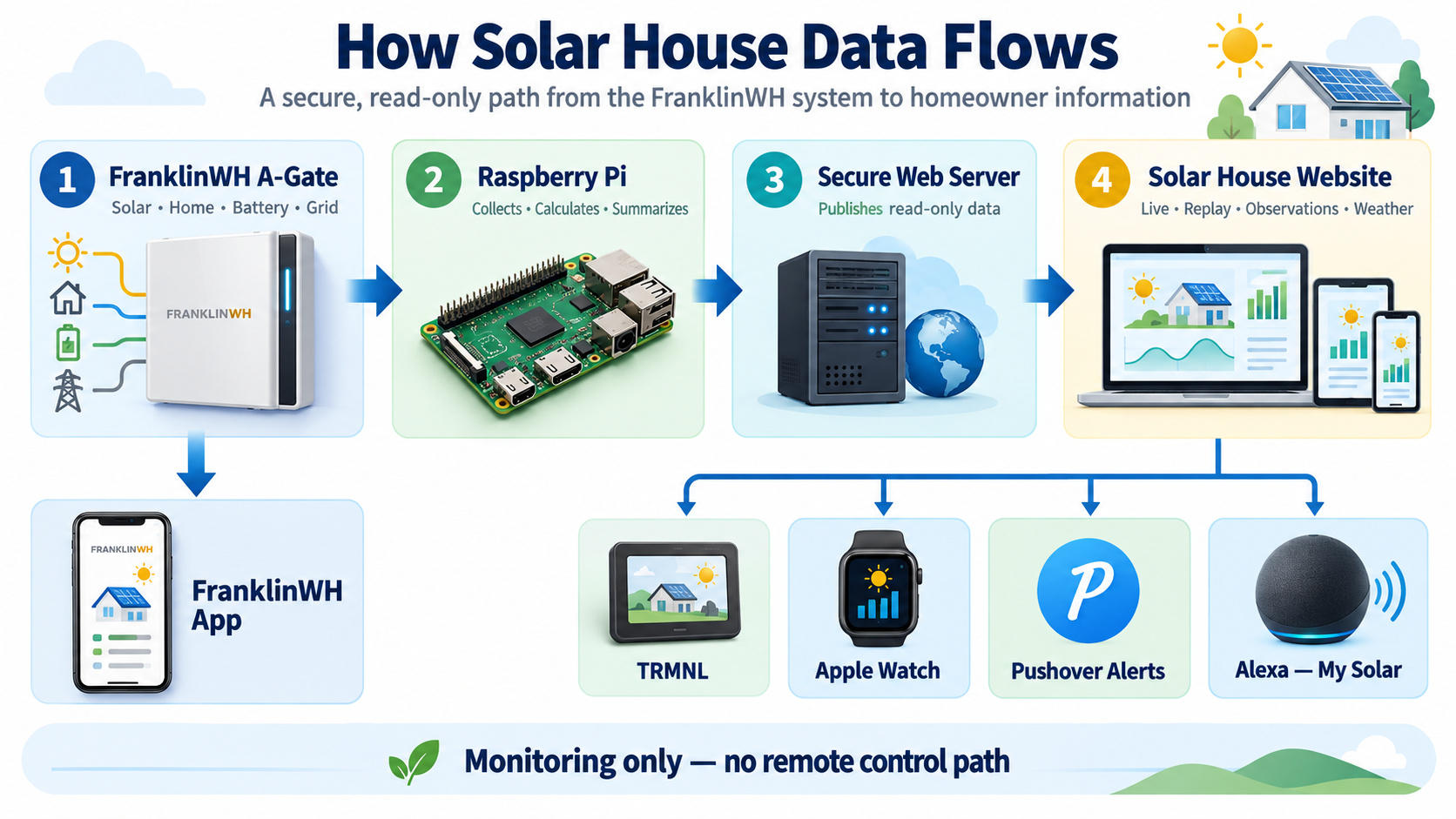

Solar House Data Flow Plumbing Map

flowchart LR classDef source fill:#1d4ed8,stroke:#1d4ed8,color:#ffffff; classDef proc fill:#7c3aed,stroke:#7c3aed,color:#ffffff; classDef file fill:#334155,stroke:#94a3b8,color:#e5e7eb; classDef page fill:#052e16,stroke:#16a34a,color:#e5e7eb; FR[FranklinWH Gateway]:::source subgraph PI[Raspberry Pi solar_v2_pi] BR[bridge.py]:::proc OUT[grid_outage_state.py]:::proc PUB[publish_widget.sh]:::proc ROLL[daily rollup job]:::proc SOLAR[solar.json live snapshot]:::file RAW[raw.json]:::file HIST[history time series]:::file STATE[grid_outage_state.json current grid state]:::file JSONL[grid_outages.jsonl outage history]:::file DAILY[daily_summary.json yesterday rollups]:::file WID[widget outputs]:::file end subgraph WEB[Web Pages] LIVE[Live Flow page]:::page REPLAY[Replay page]:::page OBS[Observations Story page]:::page WX[Weather page]:::page TRMNL[TRMNL widgets]:::page end FR --> BR BR --> SOLAR BR --> RAW BR --> HIST SOLAR --> OUT OUT --> STATE OUT --> JSONL HIST --> ROLL ROLL --> DAILY JSONL -. later rollup .-> ROLL PUB --> WID SOLAR --> LIVE RAW -. optional .-> LIVE HIST --> REPLAY DAILY --> OBS SOLAR -. live grid pill .-> OBS WID --> TRMNL
